| 包装材料 | 竹、木 |
|---|---|
| 电压 | 110V |
| 功率 | 2.5Kw |
| 功能 | 封口 |
| 适用对象 | 油类,鲜奶,碳酸饮料,酸奶,奶茶,矿泉水,酒类饮料,酱类,化妆品类,护肤品类,护发用品,果汁饮料 |
| 售后服务 | 保修一年 |
| 外形尺寸 | 3100*1900*1600mm |
| 重量 | 500kg |
| 营销 | 新品 |
| 适用行业 | 医药,食品,日化 |
| 物料类型 | 固体 |
| 自动化程度 | 全自动 |
| 品牌 | SC |
| 型号 | SCR-89 |
| 加工定制 | 是 |
| 加工定制：是 | 品牌：申创 | 型号：SC |
| 产品别名：大豆油自动装箱机 | 类型：全自动 | 用途：产品装盒装箱封箱 |
| 适用对象：果汁饮料、食用油类、碳酸饮料、酒类饮料、矿泉水、纯净水、护发用品、护肤品类、化妆品类、药水、酸奶、鲜奶、酱类、油类、奶茶、五金 | 包装类型：箱 |
技术咨询请联系刘先生 电话：18578459062 0769-81016985

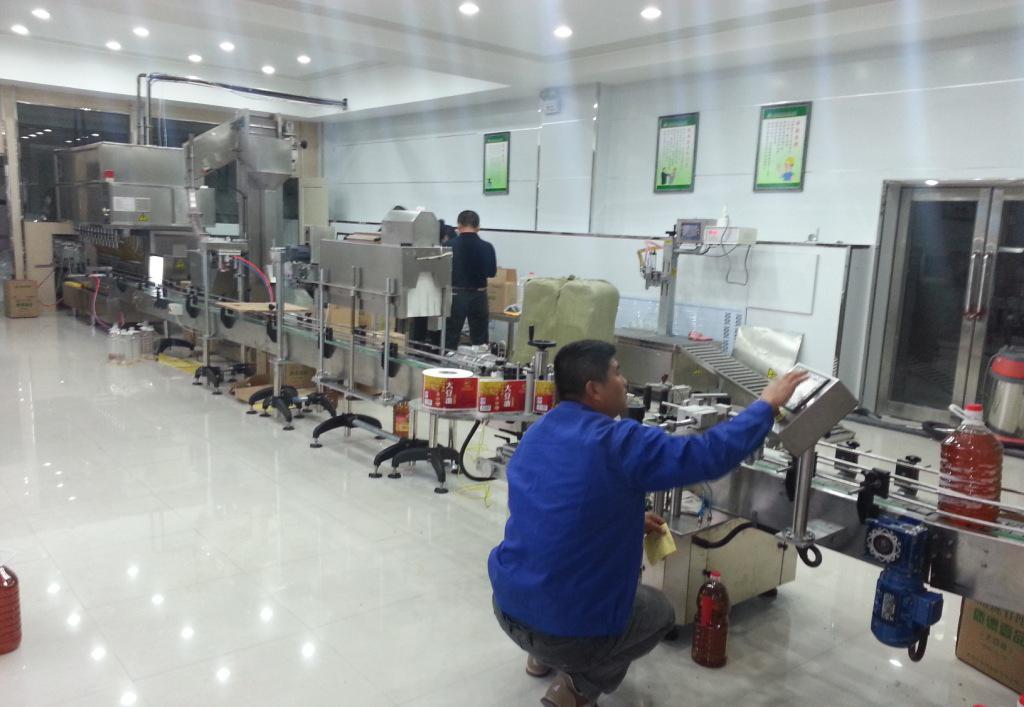

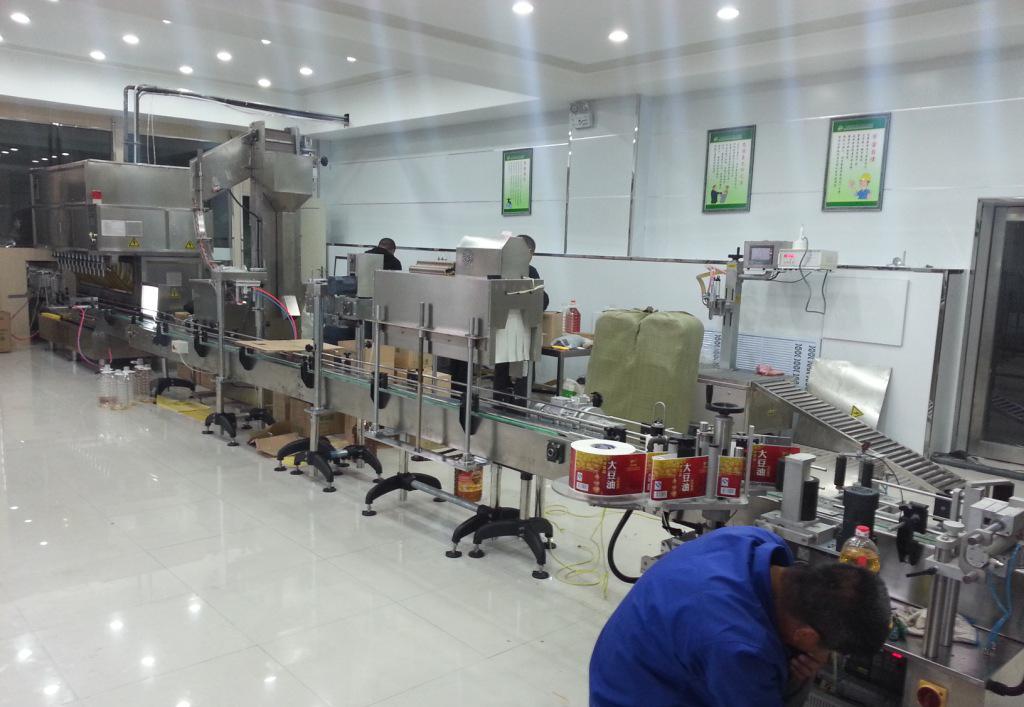

整套流水线的流程是自动装盒，开箱，装箱，封箱，打包装。整过程是无人化操作，大大提高生产效率。
全自动开盒入料封盒一体包装机
用途：流程中自动完成开盒、装料、折耳、封盒。
主要特点：
本机是集开盒、装料、折耳、插盒一体机,适用于多品种，多规格的纸盒包装，配有三菱PLC微电脑控制、自动报警、故障提示、具有人机界面控制、操作简单、维护方便等特点，封盒系统具有自动开盒、进料、折耳、封盒等功能、无须人手，整机架及接触物料的部件全部采用**不锈钢和铝材，表面进行了抛光处理，外形美观大方，不污染环境。
开箱机
用途：流程中自动完成开箱、成形、下底叶片折合粘胶带。

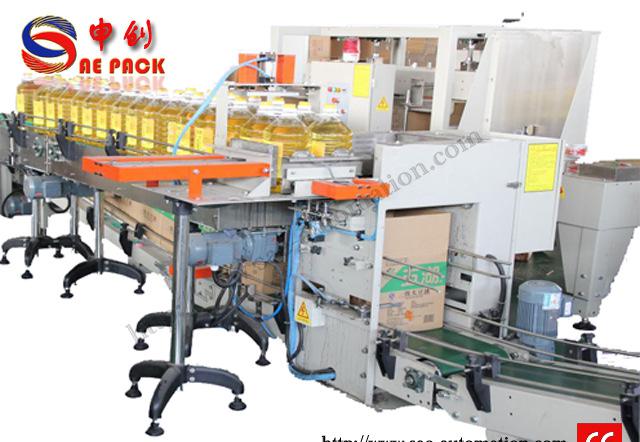

装箱机
用途：完成流程中自动装箱。
封箱折盖机
用途：流程中自动完成折盖与封箱操作。
主要特点：
1、纸箱上前盖靠船形板折弯，其他三个叶片气动折合，平稳顺畅，封箱作业一气呵成，美观省力，可配合自动化包装机械系列使用。
2、引进新型贴带器，不用鼓风机吹挺胶带，利用压片装置，使胶带挺立不弯下而造成不能粘贴。
3、左右皮带传动（3240＊80加导条），主传动机构使用特殊培林座高精密、低噪音，增加皮带使用寿命。
4、采用梯形丝杆同步调节宽窄高低，结构设计可靠。
5、纸箱两端封箱胶带折角长度60~65mm、可定制80mm、100mm。
6、封箱机标准规格品，零件随时供应。
A full line of the process is automatic box, box, packing, sealing, packing. The whole process is unmanned operation, greatly improve the production efficiency.
Full automatic box opening into the sealing box body packing machine
Purpose: process automatically open box, filling, fold, sealed box.
Main features:
The machine is set to open the box, filling, fold, box machine, applicable to many varieties, many specifications of the carton packaging, with the Mitsubishi PLC microcomputer control, automatic alarm, fault prompt, man machine interface control, simple operation, easy maintenance, sealed box system with automatic box opening, feed, fold, sealed box functions, without manpower, machine frame and a contact material parts are all made of high quality stainless steel and aluminum, surface polishing treatment, beautiful appearance, no pollution of the environment.
Unpacking machine
Purpose: process automatically out of the box, forming, the bottom blade folding adhesive tape.
Packing machine
Purpose: to complete the process of automatic packing.
Sealing cover folding machine
Purpose: process automatically folding cover and sealing operation.
Main features:
1, carton and cover on ship board bending, the other three blade pneumatic folding, smooth, sealing operation make smooth reading, beautiful and labor-saving, can be matched with automated packaging machinery series.
In 2, the introduction of a new type of adhesive tape device, no blower blowing a tape, using compression device, which makes the tape does not stand down and cause cannot paste.
Around 3, a belt drive ( 3240 * 80 bar ), the main transmission mechanism using a special bearing holder for high precision, low noise, increase the service life of the belt.
In 4, the trapezoidal screw synchronous regulation width height, structure design and reliability.
In 5, the carton ends sealing tape angle length of 60~65mm, 80mm, 100mm can be customized.
6, sealing machine standard goods, spare parts supply at any time.
